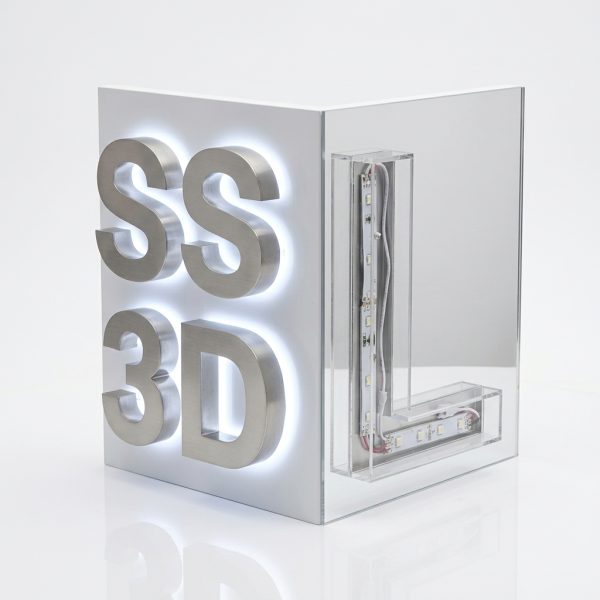

Custom SS Backlit 3D Lettering – Architectural Stainless Steel Halo-Lit Channel Signage

Project unmatched prestige and executive sophistication with Custom SS Backlit 3D Lettering. Precision-fabricated from 1mm to 2mm Grade 304 stainless steel with a refined brushed hairline or mirror-polished finish, these custom 3D letters project a warm, ambient halo-lit bounce against mounting surfaces. Features high-efficiency, IP67-rated LED modules housed behind an optical-grade acrylic/perspex rear diffuser for perfectly uniform lighting without hot spots or wire clutter. Supplied with threaded mounting studs, spacers, and complete installation on your existing wall or building facade across Dubai, Abu Dhabi, Sharjah, and the UAE.

  • Grade 304 Stainless Steel Fabrication: Crafted from 1–2 mm thick SS 304 in brushed satin or mirror polish for lifetime corrosion resistance.

  • Uniform LED Halo-Lit Backlighting: Concealed IP67 LED modules diffuse through a rear acrylic base to create a sophisticated wall glow.

  • Seamless Concealed Wiring: Pre-engineered mounting studs and hollow letter returns hide all electrical wiring behind the facade.

  • Full UAE Turnkey Installation: Supplied complete with precision paper mounting templates and professional mounting on existing walls.

Description

Architectural Halo-Lit Stainless Steel Channel Letters for Corporate Headquarters, Luxury Retail & Hotel Facades

Transform corporate reception backdrops and building facades with Custom SS Backlit 3D Lettering. Engineered as an executive architectural identity system for multinational corporate offices, luxury boutiques, hotel entrances, bank branches, and high-end residential developments across Dubai, Sharjah, Abu Dhabi, and the wider UAE.

Each letter is custom-cut using high-precision CNC fiber lasers from 1.0mm to 2.0mm Grade 304 stainless steel, with side returns hand-welded to create dimensional depths from 30mm to 100mm. Available in Brushed Satin Hairline, High-Mirror Polish, Electroplated Gold, Rose Gold, or Titanium Black, the metallic face is impervious to airborne salt, humidity, and intense desert sunlight.

The reverse face is fitted with a solid laser-cut acrylic/perspex diffuser plate, housing fully sealed waterproof IP67 LED modules. When illuminated, light projects backward onto the wall, forming a soft, continuous halo silhouette that defines the letter contours. Threaded stainless steel standoff studs offset the letters 15mm to 30mm from the wall, allowing clean wire passage through the mounting surface for a completely wireless appearance.

Key Features & Product Advantages:

  • Premium Grade 304 Stainless Steel: Marine-grade alloy prevents rust, pitting, and tarnishing in harsh coastal and high-humidity environments.

  • Optical Rear Perspex Diffuser: Eliminates individual LED pinpoints, ensuring a silky, unbroken rear illumination bounce.

  • Clean Architectural Floating Aesthetic: Threaded standoff studs create natural physical clearance for light dispersion and shadow depth.

  • Weather-Resistant Outdoor Sealed Build: Fully weatherized internal components withstand desert heat, sandstorms, and heavy rain.

  • Turnkey On-Site Installation: Complete mounting on existing drywall, marble, granite, wood paneling, or exterior cladding.

Product Specifications:

Feature Specification
Face & Return Material 1.0 mm – 2.0 mm Grade 304 Stainless Steel (SS 304)
Letter Depths (3D Relief) Custom 30mm, 50mm, 75mm, 100mm Hollow Channel Fabrication
Surface Finishes Brushed Hairline, Mirror Polish, Electroplated Gold Mirror, Rose Gold, Titanium Black, Custom PVD Coatings
Rear Diffuser 3mm to 10mm Optical Cast Acrylic / Perspex Diffuser Plate
Illumination Source IP67 Waterproof Samsung / Epistar LED Modules (12V DC Low Voltage)
Color Temperature Warm White (3000K), Cool White (6500K), Neutral White (4000K), RGB Color-Changing
Mounting Mechanism Threaded Rear Standoff Studs & Spacers with Concealed Wall Pass-Through Wiring
Transformer Unit CE / UL Certified Waterproof Meanwell Power Supply (100V–240V AC Input)
Installation Service Full On-Site Professional Installation on Existing Wall / Facade Included
Ideal Applications Corporate Lobby Feature Walls, Luxury Storefront Facades, Hotel Entrances, Government Buildings
