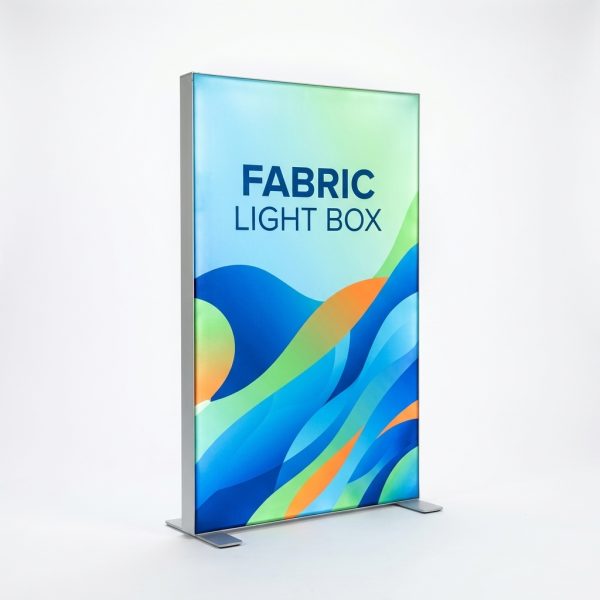

Transform large interior walls, retail storefronts, and exhibition spaces into bright, illuminated displays with the Custom Fabric Light Box. Built with a sleek architectural aluminum profile and high-efficiency lattice backlighting or edge-lit LED modules, this illuminated textile sign projects vibrant, even light across high-definition Silicone Edge Graphics (SEG) with zero hot spots or shadows. The tension fabric stretches tight into the frame’s perimeter tracks for a completely frameless aesthetic. Easy to assemble and update with folded replacement fabrics, it serves as an essential illuminated architectural signage system for retail stores, shopping malls, airport terminals, hotel lobbies, and corporate showrooms across Dubai, Abu Dhabi, Sharjah, and the UAE.
Uniform Lattice Backlit LED Matrix: Engineered LED curtain lighting ensures edge-to-edge illumination with zero hot spots.
Frameless Silicone Edge Graphic (SEG) System: Silicone keder strip sewn into graphic edges pushes into frame tracks for a drum-tight finish.
Premium High-Density Backlit Fabric: Flame-retardant 200gsm polyester renders rich color depth without light bleed or reflection.
Modular Wall-Mounted or Hanging Profiles: Slim aluminum extrusions available in wall-mount, double-sided hanging, or recessed options.
Architectural LED Lightbox Display with Tool-Free SEG Tension Fabric Graphics for Retail Stores, Malls & Commercial Interiors
Deliver high-impact visual communication and illuminate brand imagery with the Custom Fabric Light Box. Designed as a permanent or modular architectural lighting fixture for retail flagship stores, shopping center corridors, airport advertising zones, corporate headquarters, and exhibition halls across Dubai, Sharjah, Abu Dhabi, and the wider UAE.
Constructed using heavy-duty extruded anodized aluminum profiles (depths from 60mm to 120mm), this light box features an integrated OSRAM LED lattice module system. Wide-angle optic lenses diffuse light evenly across the entire surface area, delivering daylight-balanced (6500K) illumination with low power consumption and minimal heat output.
The visual graphic is produced on high-density backlit stretch polyester using high-definition dye-sublimation printing. A thin flexible silicone strip (keder) is double-stitched around the perimeter of the printed fabric. Pushing the silicone edge into the frame’s channel pulls the fabric taut, creating a borderless, wrinkle-free glowing graphic wall. When marketing campaigns update, replacement fabric prints fold down into compact shipping envelopes and can be installed in minutes by store staff without special tools.
Key Features & Product Advantages:
Seamless Large-Format Display: Capable of spanning wide architectural walls without visual breaks, seams, or heavy frames.
Frameless Visual Appeal: Micro-thin aluminum border ensures 100% of the visible surface is glowing graphic artwork.
Energy-Efficient Continuous Operation: Rated for 50,000+ hours of commercial operation with low wattage power draw.
Flat-Pack Graphic Shipping: Textile graphics fold down compactly for low-cost shipping and storage compared to rigid acrylic faces.
Washable & Non-Glare Fabric Surface: Fire-rated (B1 certified) matte polyester resists reflections under bright commercial lighting and can be gently cleaned.
Product Specifications:
| Feature | Specification |
| Custom Dimensions | Fully customizable from 100cm x 100cm up to large-scale walls (e.g., 600cm x 300cm) |
| Profile Depths | 60mm (Slim Wall-Mount), 80mm (Standard Wall-Mount), 120mm (Double-Sided Freestanding/Hanging) |
| Frame Material | Anodized Extruded Aluminum (Matte Silver, Satin Black, or Custom RAL Powder-Coat) |
| Graphic Media | 200 GSM Premium High-Density Backlit Polyester Textile |
| Graphic Attachment | SEG (Silicone Edge Graphic) with 14mm x 3mm Sewn Silicone Keder Strip |
| Light Source | High-Efficacy Backlit LED Lattice Modules / Edge-Lit OSRAM LEDs (6500K White) |
| Power Supply | Built-in CE/UL Certified Meanwell 12V / 24V Transformer Unit |
| Fire Safety Rating | B1 Flame Retardant Certified (Compliant with UAE Mall & Airport Safety Standards) |
| Ideal Applications | Retail Store Feature Walls, Mall Corridors, Airport Ad Bays, Corporate Lobbies, Exhibition Stands |
